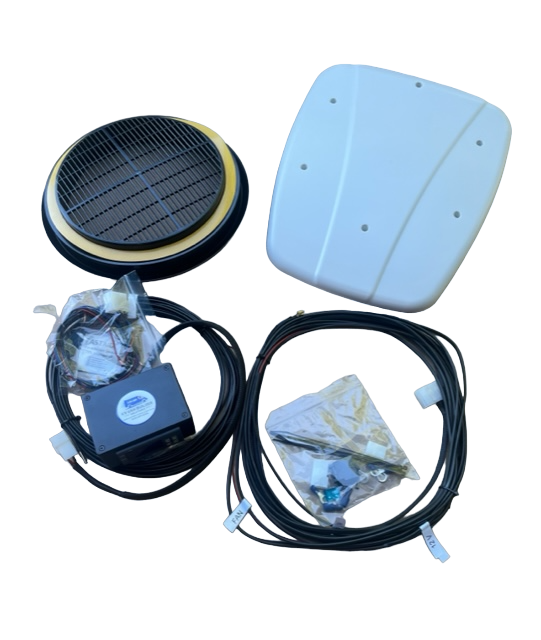

Roof Fan ( Extract ) complete Kit With Harness and Switch and Digital Controller

SKU: VBS352-7A-1-1+DCEX Categories: ,

£147.90

SPECIAL INTRODUCTORY OFFER PRICE LIMITED TIME

COMPLETE DIY KIT, WITH SWITCH AND WIRING AND DIGITAL CONTROLLER

12 Volt Extract fan for Dog vans/Motorhomes/Caravans
Fan can be Reversed with Switch Supplied
(Please note any fan can be reversed but will not be as efficient when it is reversed)
Please order correct PRIMARY FUNCTION, eg  Intake or Extract
 Complete Kit with Switch and with full Wiring Harness,
 Fuse holder with bracket and 15 amp fuse, wiring to battery with choice of terminals.

8 Metres of cable from switch to fan, 4 Metres cable from switch to battery,
 suitable for extra long wheelbase vans.
( Shorter harnesses available )

Also Free fixing Screws

 With built in finger guard, and suitable for single skin or double skin.

Suitable for Colour Coding.


White UV Resistant ABS Body, Body size 385mm x 313mm x 71mm.

Cut out hole size 238mm – 240mm.


12 Volt  7 Amp Draw

Save time fitting with built in finger guard.

( 24 Volt available on request )

Comes with fitting instructions and gasket also

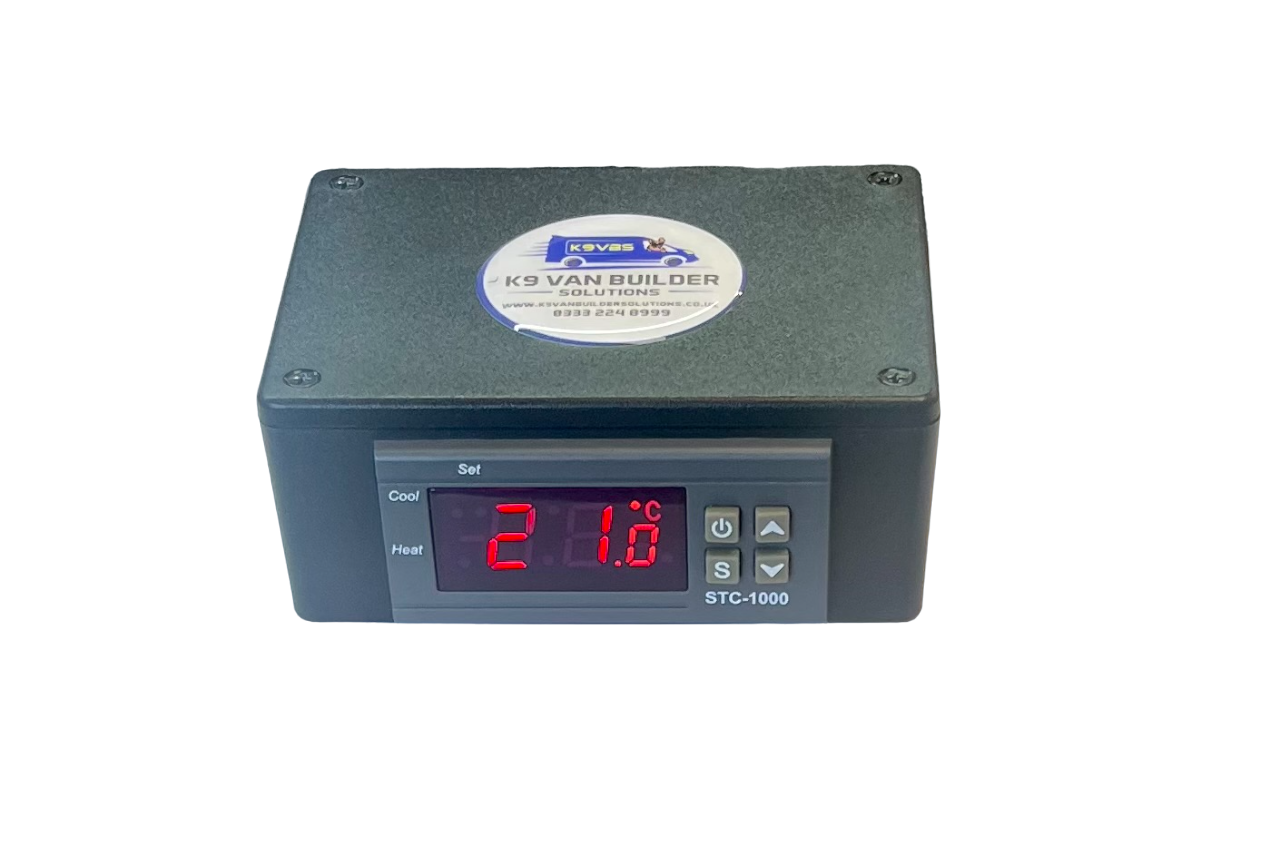

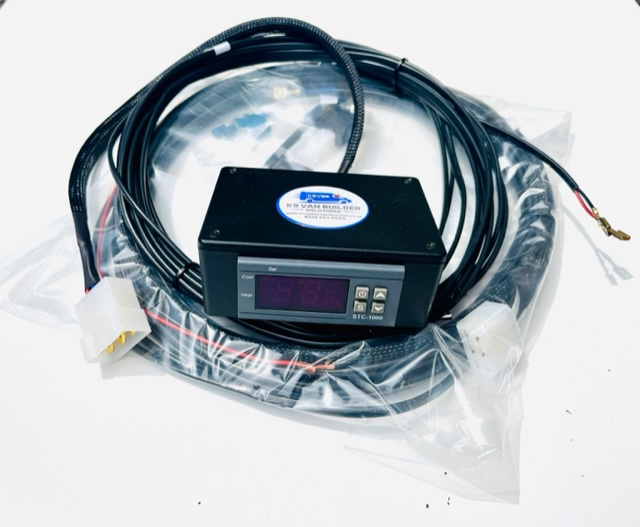

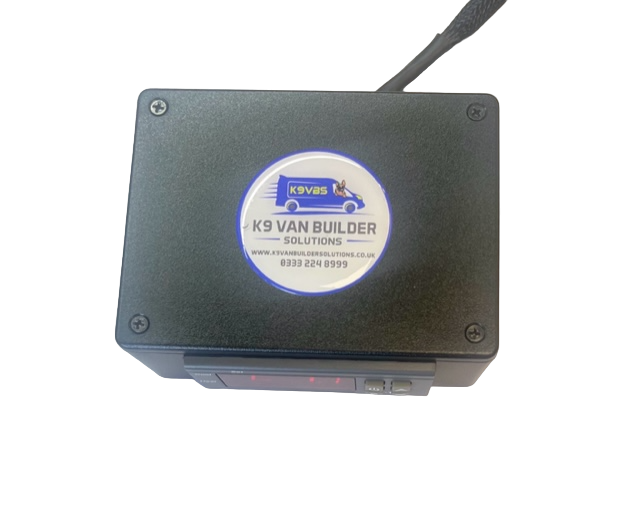

Digital Roof fan controller, complete with harness and temperature probe, 1 metre short harness to plug in to Digital Controller and wire to existing or new fan.

Allow your fan to cut in and out at set temperatures.

These controllers have been Preset to come on at 23 c and turn off at 20 c When red COOL led light is flashing it means the ON Temperature has been reached and the unit will turn on approximately 90 seconds after this.

There is a 3 Degree window between on and off setting so whatever you set as Turn off Setting Turn on will be 3 Degrees higher.

Wiring and setting Instructions included

With Velcro pads to fix to dash or trim



Out of stock

Description

SPECIAL INTRODUCTORY OFFER PRICE LIMITED TIME

COMPLETE DIY KIT, WITH SWITCH AND WIRING and DIGITAL CONTROLLER

12 Volt Extract fan for Dog vans/Motorhomes/Caravans
Fan can be Reversed with Switch Supplied
(Please note any fan can be reversed but will not be as efficient when it is reversed)
Please order correct PRIMARY FUNCTION, eg  Intake or Extract
 Complete Kit with Switch and with full Wiring Harness,
 Fuse holder with bracket and 15 amp fuse, wiring to battery with choice of terminals.

8 Metres of cable from switch to fan, 4 Metres cable from switch to battery,
 suitable for extra long wheelbase vans.
( Shorter harnesses available )

Also Free fixing Screws

With built in finger guard, and suitable for single skin or double skin.

Suitable for Colour Coding.


White UV Resistant ABS Body, Body size 385mm x 313mm x 71mm.

Cut out hole size 238mm – 240mm.

12 Volt  7 Amp Draw

Save time fitting with built in finger guard.

( 24 Volt available on request )

Comes with fitting instructions and gasket also comes with


Digital Roof fan controller, complete with harness and temperature probe, 1 metre short harness to plug in to Digital Controller and wire to existing or new fan.

Allow your fan to cut in and out at set temperatures.

These controllers have been Preset to come on at 23 c and turn off at 20 c When red COOL led light is flashing it means the ON Temperature has been reached and the unit will turn on approximately 90 seconds after this.

There is a 3 Degree window between on and off setting so whatever you set as Turn off Setting Turn on will be 3 Degrees higher.

Wiring and setting Instructions included

With Velcro pads to fix to dash or trim



Additional information

Weight 3.2 kg
Dimensions 400 × 320 × 100 mm
